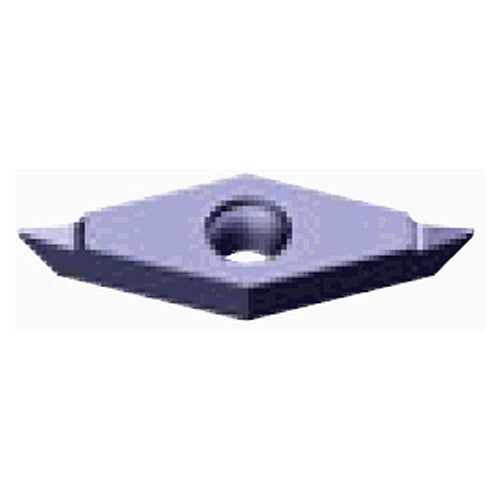

VPET 630 MFN-JSP SH730
Item #: TG556856753
Brand: Tungaloy
Model #: 6856753
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Tool Type | Turn Positive Inserts |
| Application | | Inserts | |
| Fixing Hole Diameter (D1) | 0.091″ |
| Insert Style | VPET |
| Min D.O.C. | 0.0031″ |
| Corner Radius (RE) | 0.004″ |
| Depth of Cut Maximum (APMX) | 0.0197″ |
| Insert Size | 630.2 |
| Min. Turning Feed (ft(min)) | 0.0004 ″/rev |
| Cutting Edge Length (L) | 0.327″ |
| Max. Turning Feed (ft(max)) | 0.0015 ″/rev |
| Insert Thickness (S) | 0.094″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 0.187″ |
| Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide |
| Chip Breaker Type | JSP |
| Coating | TiAlN |
| Measurement Type | Inch |
| Grade | SH730 |
| Body Material | Carbide |
