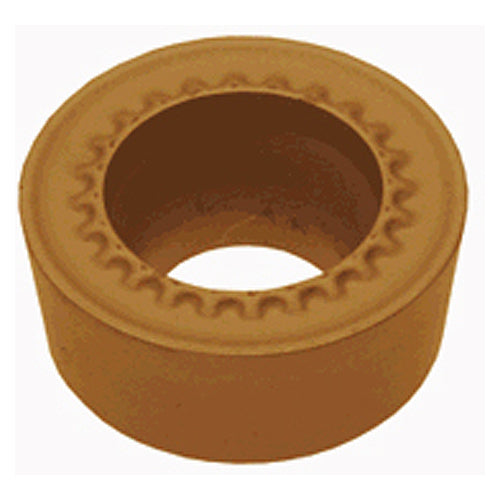

RCMT1606M0-RS AH120
Item #: TG556852172
Brand: Tungaloy
Model #: 6852172
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Fixing Hole Diameter (D1) | 0.217″ |
| Application | | Inserts | |
| Min D.O.C. | 0.059″ |
| Insert Style | RCMT |
| Depth of Cut Maximum (APMX) | 0.1181″ |
| Insert Size | 1606M0 |
| Min. Turning Feed (ft(min)) | 0.0236 ″/rev |
| Cutting Edge Length (L) | 0.63″ |
| Max. Turning Feed (ft(max)) | 0.0472 ″/rev |
| Insert Thickness (S) | 1/4″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 0.63″ |
| Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide |
| Chip Breaker Type | RS |
| Coating | TiAlN |
| Measurement Type | Inch |
| Grade | AH120 |
| Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
