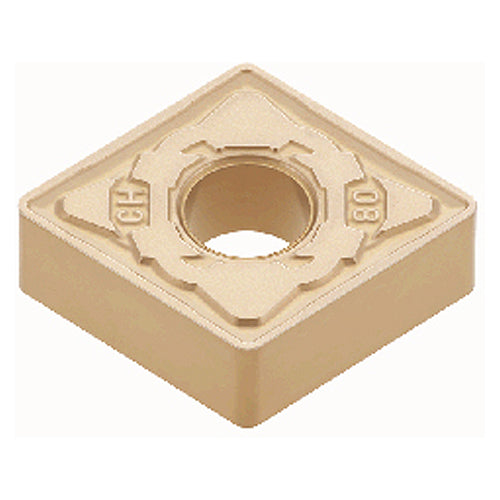

CNMG160616-CH T5115
Item #: TG556850164
Brand: Tungaloy
Model #: 6850164
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | |
| Tool Type | Turn Negative Inserts |
| Application | | Inserts | |
| Fixing Hole Diameter (D1) | 6.35 mm |
| Insert Style | CNMG |
| Min D.O.C. | 2 mm |
| Corner Radius (RE) | 1.6 mm |
| Depth of Cut Maximum (APMX) | 6 mm |
| Insert Size | 160616 |
| Min. Turning Feed (ft(min)) | 0.2 mm/rev |
| Cutting Edge Length (L) | 16.1 mm |
| Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Insert Thickness (S) | 6.35 mm |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 15.875 mm |
| Chip Breaker Type | CH |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
| Grade | T5115 |
