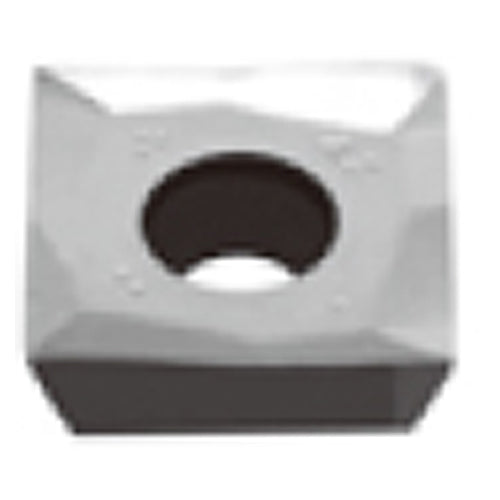

SWGT1304PDFR-AJ KS05F
Item #: TG556846127
Brand: Tungaloy
Model #: 6846127
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | Non Ferrous Metals | Hi Temp Alloys | |
| Maximum Feed per Tooth (fz(max)) | 0.0079 in/tooth |
| Application | | Shoulder Milling | |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.394″ |
| Tool Type | Mill AL, HTA Geometric Inserts |
| Insert Width (W1) | 0.535″ |
| Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Inscribed Circle Diameter (IC) | 0.535″ |
| Cutting Edge Effective Length (LE) | 0.535″ |
| Insert Thickness (S) | 0.197″ |
| Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.063″ |
| Body Material | Carbide |
| Grade | KS05F |
