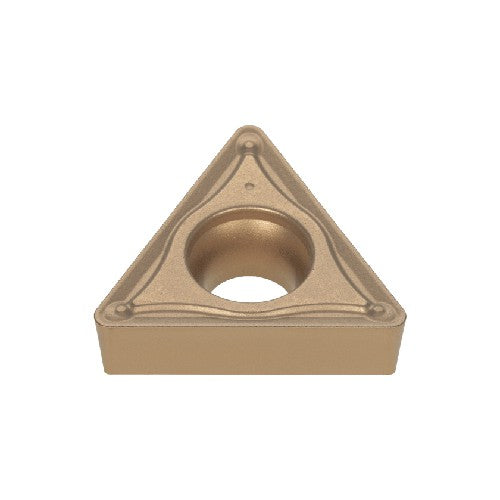

TCMT 32.51 TSF AH8015
Item #: TG556825771
Brand: Tungaloy
Model #: 6825771
| Product Specifications | |
|---|---|
| Applicable Material | | Stainless Steel | Hard Materials | Hi Temp Alloys | |
| Fixing Hole Diameter (D1) | 0.173″ |
| Application | | Inserts | |
| Min D.O.C. | 0.0295″ |
| Insert Style | TCMT |
| Depth of Cut Maximum (APMX) | 0.0984″ |
| Corner Radius (RE) | 0.156″ |
| Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Insert Size | 32.51 |
| Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Insert Thickness (S) | 0.156″ |
| Clearance Angle Major (AN) | 80 Degrees |
| Inscribed Circle Diameter (IC) | 0.382″ |
| Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide |
| Chip Breaker Type | TSF |
| Coating | TiAlN |
| Measurement Type | Inch |
| Grade | AH8015 |
| Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
