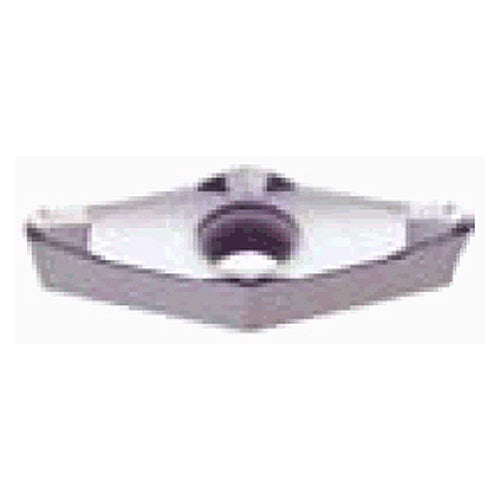

VCGT220520-AL KS05F
Item #: TG556822339
Brand: Tungaloy
Model #: 6822339
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | Non Ferrous Metals | Hi Temp Alloys | |
| Fixing Hole Diameter (D1) | 5.5 mm |
| Application | | Inserts | |
| Min D.O.C. | 2 mm |
| Insert Style | VCGT |
| Depth of Cut Maximum (APMX) | 8 mm |
| Corner Radius (RE) | 2 mm |
| Min. Turning Feed (ft(min)) | 0.2 mm/rev |
| Insert Size | 220520 |
| Max. Turning Feed (ft(max)) | 0.8 mm/rev |
| Cutting Edge Length (L) | 22.1 mm |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 5.56 mm |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Chip Breaker Type | AL |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
| Grade | KS05F |
| Body Material | Carbide |
| Tool Type | Turn Inserts AL, HTA Geometric |
