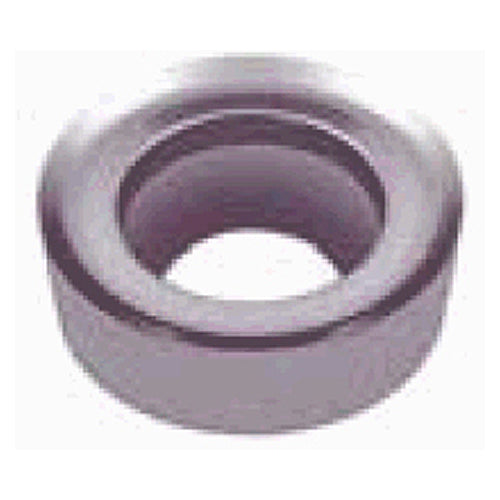

RCGT1003M0-AL KS05F
Item #: TG556822303
Brand: Tungaloy
Model #: 6822303
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | Non Ferrous Metals | Hi Temp Alloys | |
| Fixing Hole Diameter (D1) | 0.173″ |
| Application | | Inserts | |
| Min D.O.C. | 0.0196″ |
| Insert Style | RCGT |
| Depth of Cut Maximum (APMX) | 0.1969″ |
| Insert Size | 1003M0 |
| Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Cutting Edge Length (L) | 0.394″ |
| Max. Turning Feed (ft(max)) | 0.0196 ″/rev |
| Insert Thickness (S) | 1/8″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 0.394″ |
| Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide |
| Chip Breaker Type | AL |
| Grade | KS05F |
| Measurement Type | Inch |
| Tool Type | Turn Inserts AL, HTA Geometric |
| Body Material | Carbide |
