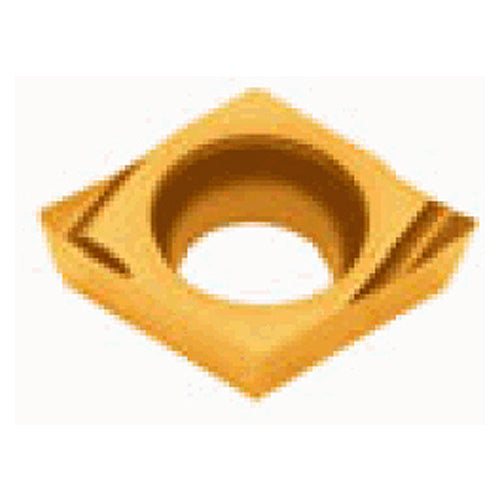

EPGT040102L-J08 J740
Item #: TG556821732
Brand: Tungaloy
Model #: 6821732
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Tool Type | Turn Positive Inserts |
| Application | | Inserts | |
| Fixing Hole Diameter (D1) | 2.3 mm |
| Insert Style | EPGT |
| Min D.O.C. | 0.2 mm |
| Corner Radius (RE) | 0.2 mm |
| Depth of Cut Maximum (APMX) | 1 mm |
| Insert Size | 040102 |
| Min. Turning Feed (ft(min)) | 0.01 mm/rev |
| Cutting Edge Length (L) | 4.1 mm |
| Max. Turning Feed (ft(max)) | 0.15 mm/rev |
| Insert Thickness (S) | 1.59 mm |
| Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 3.97 mm |
| Cutting Direction (HAND) | Left Hand |
| Cutting Edge Material | Carbide |
| Chip Breaker Type | J08 |
| Coating | TiN |
| Measurement Type | Metric |
| Grade | J740 |
| Body Material | Carbide |
