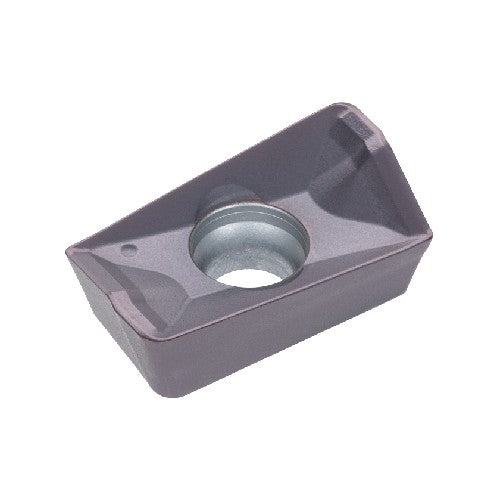

ASMT11T304PDPR-MJ NS740
Item #: TG556821464
Brand: Tungaloy
Model #: 6821464
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Wiper Edge Length (BS) | 0.055″ |
| Application | | Shoulder Milling | |
| Grade | NS740 |
| Insert Length (INSL) | 0.484″ |
| Maximum Feed per Tooth (fz(max)) | 0.0039 in/tooth |
| Corner Radius (RE) | 0.0157″ |
| Cutting Edge Material | Cermet |
| Depth of Cut Maximum (APMX) | 0.417″ |
| Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.264″ |
| Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Inscribed Circle Diameter (IC) | 0.264″ |
| Measurement Type | Inch |
| Insert Thickness (S) | 0.146″ |
| Body Material | Carbide |
