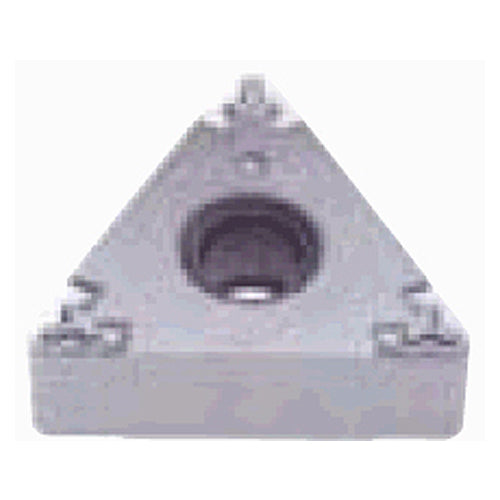

TNGG110308-01 NS520
Item #: TG556808124
Brand: Tungaloy
Model #: 6808124
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | |
| Tool Type | Turn Negative Inserts |
| Application | | Inserts | |
| Fixing Hole Diameter (D1) | 2.26 mm |
| Insert Style | TNGG |
| Min D.O.C. | 0.02 mm |
| Corner Radius (RE) | 0.8 mm |
| Depth of Cut Maximum (APMX) | 0.5 mm |
| Insert Size | 110308 |
| Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 11 mm |
| Max. Turning Feed (ft(max)) | 0.15 mm/rev |
| Insert Thickness (S) | 3.18 mm |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 6.35 mm |
| Chip Breaker Type | 01 |
| Cutting Edge Material | Cermet |
| Measurement Type | Metric |
| Grade | NS520 |
| Body Material | Carbide |
