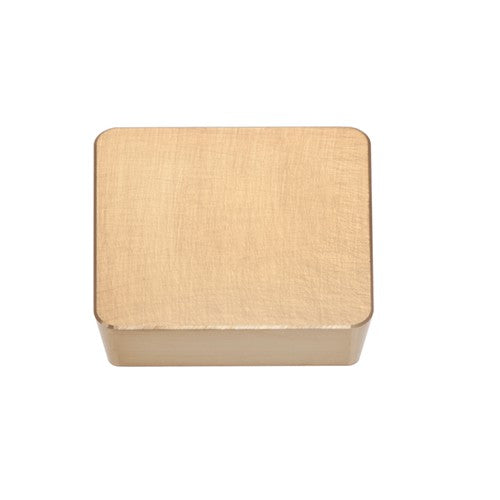

SPGN 421 LX11
Item #: TG556807058
Brand: Tungaloy
Model #: 6807058
| Product Specifications | |
|---|---|
| Applicable Material | | Hard Materials | |
| Tool Type | Turn Positive Inserts |
| Application | | Inserts | |
| Min D.O.C. | 0.0008″ |
| Insert Style | SPGN |
| Depth of Cut Maximum (APMX) | 0.0787″ |
| Corner Radius (RE) | 0.016″ |
| Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Size | 421 |
| Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Cutting Edge Length (L) | 1/2″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 1/8″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Chip Breaker Type | FT-LX11 |
| Cutting Edge Material | Ceramic |
| Measurement Type | Inch |
| Coating | TiN |
| Body Material | Carbide |
| Grade | LX11 |
