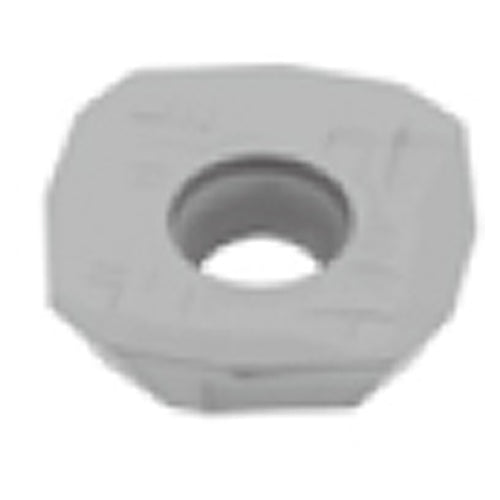

SWMT13T3AFPR-HJ T1215
Item #: TG556750621
Brand: Tungaloy
Model #: 6750621
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | |
| Coating | TiCN+Al2O3 |
| Application | | Face Milling | |
| Grade | T1215 |
| Corner Radius (RE) | 0.059″ |
| Maximum Feed per Tooth (fz(max)) | 0.0236 in/tooth |
| Depth of Cut Maximum (APMX) | 0.079″ |
| Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.579″ |
| Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.579″ |
| Minimum Feed per Tooth (fz(min)) | 0.0079 in/tooth |
| Insert Thickness (S) | 0.157″ |
| Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.091″ |
| Body Material | Carbide |
