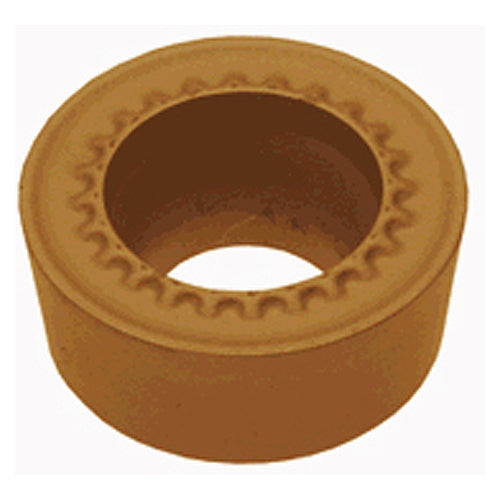

RCMT1204M0-RS AH8005
Item #: TG556747784
Brand: Tungaloy
Model #: 6747784
| Product Specifications | |
|---|---|
| Applicable Material | | Hard Materials | Hi Temp Alloys | |
| Fixing Hole Diameter (D1) | 0.173″ |
| Application | | Inserts | |
| Min D.O.C. | 0.0196″ |
| Insert Style | RCMT |
| Depth of Cut Maximum (APMX) | 0.0787″ |
| Insert Size | 1204M0 |
| Min. Turning Feed (ft(min)) | 0.0197 ″/rev |
| Cutting Edge Length (L) | 0.472″ |
| Max. Turning Feed (ft(max)) | 0.0393 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 0.472″ |
| Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide |
| Chip Breaker Type | RS |
| Coating | TiAlN |
| Measurement Type | Inch |
| Grade | AH8005 |
| Series/List # | RCMT 1204M0-RS |
| Tool Type | Turn Positive Inserts |
| Body Material | Carbide |
