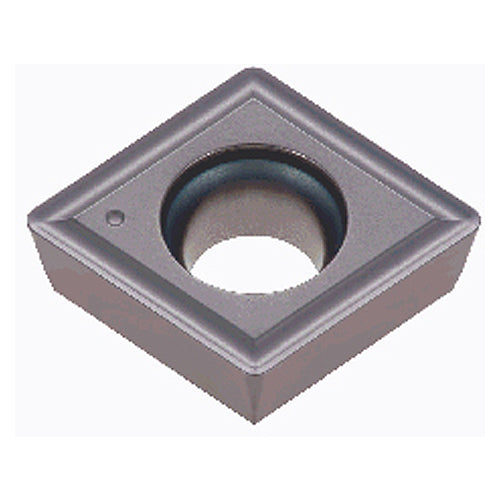

CPMT 432 AH8005
Item #: TG556747765
Brand: Tungaloy
Model #: 6747765
| Product Specifications | |
|---|---|
| Applicable Material | | Hard Materials | Hi Temp Alloys | |
| Fixing Hole Diameter (D1) | 0.217″ |
| Application | | Inserts | |
| Min D.O.C. | 0.0039″ |
| Insert Style | CPMT |
| Depth of Cut Maximum (APMX) | 0.0787″ |
| Corner Radius (RE) | 0.031″ |
| Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Size | 432 |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Cutting Edge Length (L) | 0.508″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 0.187″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Chip Breaker Type | PB |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiAlN |
| Series/List # | CPMT 432-PB |
| Grade | AH8005 |
| Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
