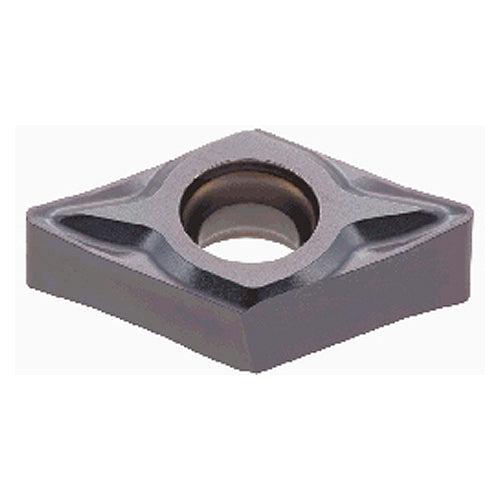

DXGU 220.5R TS NS9530
Item #: TG556723747
Brand: Tungaloy
Model #: 6723747
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Min D.O.C. | 0.0118″ |
| Application | | Inserts | |
| Depth of Cut Maximum (APMX) | 0.0787″ |
| Insert Style | DXGU |
| Min. Turning Feed (ft(min)) | 0.0031 ″/rev |
| Corner Radius (RE) | 0.008″ |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Size | 220.5 |
| Clearance Angle Major (AN) | 5 Degrees |
| Insert Thickness (S) | 1/8″ |
| Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Chip Breaker Type | TS |
| Cutting Edge Material | Cermet |
| Measurement Type | Inch |
| Grade | NS9530 |
| Series/List # | DXGU 220.5-TS |
| Tool Type | Turn Positive Inserts |
| Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.106″ |
