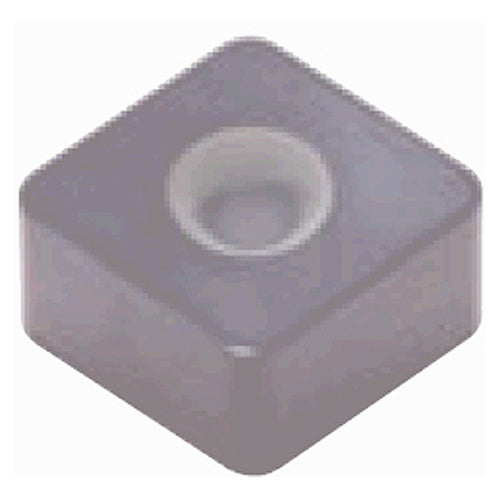

CNGD120716 FX105
Item #: TG555701722
Brand: Tungaloy
Model #: 5701722
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron| |
| Grade | FX105 |
| Application | Neg,L-style, 95deg Approach |
| Tool Type | Turn Negative Inserts |
| Insert Style | CNGD |
| Min D.O.C. | 0.05 mm |
| Corner Radius (RE) | 1.6 mm |
| Depth of Cut Maximum (APMX) | 3 mm |
| Insert Size | 120716 |
| Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 7.94 mm |
| Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Material | Ceramic |
| Measurement Type | Metric |
