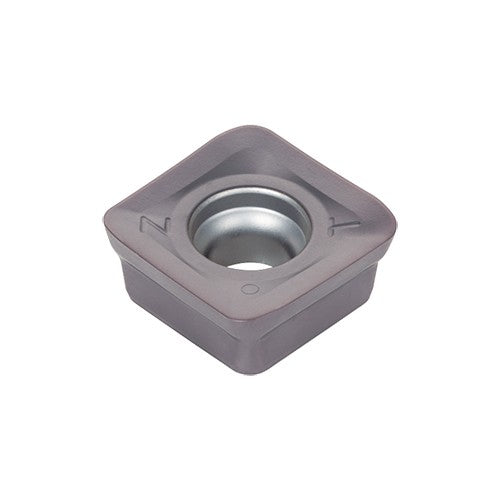

SWMT1506ZER-MT AH3135
Item #: TG436788947
Brand: Tungaloy
Model #: 6788947
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Hi Temp Alloys | |
| Grade | AH3135 |
| Application | | Face Milling | High Feed Milling | |
| Maximum Feed per Tooth (fz(max)) | 0.0787 in/tooth |
| Depth of Cut Maximum (APMX) | 0.098″ |
| Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.627″ |
| Minimum Feed per Tooth (fz(min)) | 0.0118 in/tooth |
| Inscribed Circle Diameter (IC) | 0.627″ |
| Cutting Edge Effective Length (LE) | 0.627″ |
| Insert Thickness (S) | 0.268″ |
| Measurement Type | Inch |
| Coating | TiAlN |
| Body Material | Carbide |
