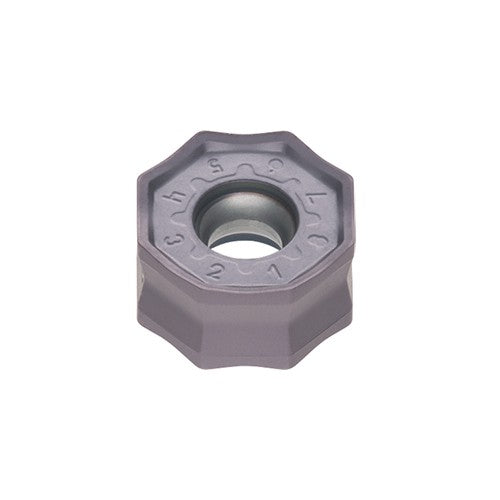

ONMU0507ANEN-MJ AH3135
Item #: TG436758743
Brand: Tungaloy
Model #: 6758743
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Hi Temp Alloys | |
| Grade | AH3135 |
| Application | | Face Milling | |
| Maximum Feed per Tooth (fz(max)) | 0.0197 in/tooth |
| Corner Radius (RE) | 0.0315″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.134″ |
| Minimum Feed per Tooth (fz(min)) | 0.0039 in/tooth |
| Inscribed Circle Diameter (IC) | 0.512″ |
| Cutting Edge Effective Length (LE) | 0.193″ |
| Insert Thickness (S) | 0.276″ |
| Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.028″ |
| Body Material | Carbide |
| Coating | TiAlN |
