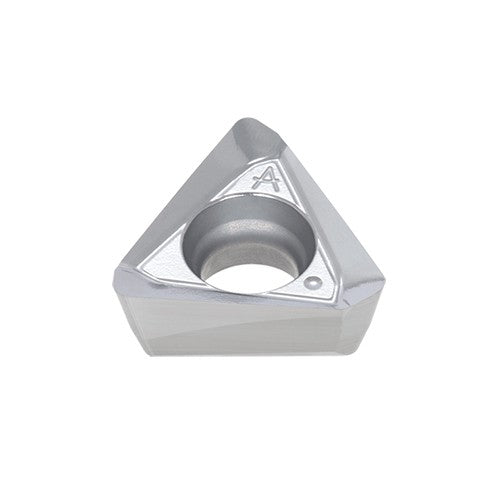

TOGT150604PDFR-AJ KS05F
Item #: TG436752950
Brand: Tungaloy
Model #: 6752950
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | Non Ferrous Metals | Hi Temp Alloys | |
| Maximum Feed per Tooth (fz(max)) | 0.0098 in/tooth |
| Application | | Shoulder Milling | |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ |
| Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.591″ |
| Minimum Feed per Tooth (fz(min)) | 0.0031 in/tooth |
| Inscribed Circle Diameter (IC) | 0.493″ |
| Cutting Edge Effective Length (LE) | 0.618″ |
| Insert Thickness (S) | 0.22″ |
| Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.083″ |
| Body Material | Carbide |
| Grade | KS05F |
