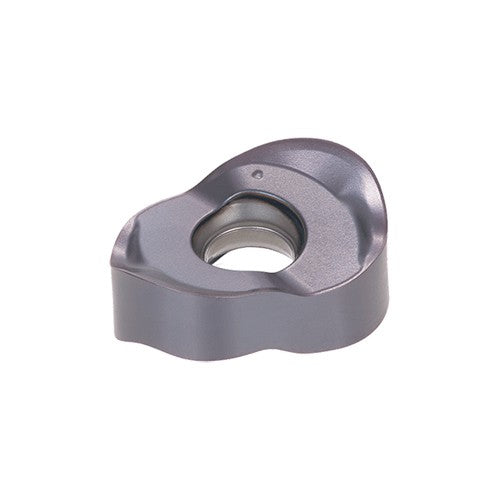

LNMX0607R6-MJ AH120
Item #: TG436735302
Brand: Tungaloy
Model #: 6735302
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Coating | TiAlN |
| Application | | Face Milling | High Feed Milling | Profile Milling | |
| Grade | AH120 |
| Insert Length (INSL) | 0.709″ |
| Maximum Feed per Tooth (fz(max)) | 0.0236 in/tooth |
| Corner Radius (RE) | 0.2362″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.236″ |
| Minimum Feed per Tooth (fz(min)) | 0.0059 in/tooth |
| Insert Width (W1) | 0.496″ |
| Measurement Type | Inch |
| Insert Thickness (S) | 0.291″ |
| Body Material | Carbide |
