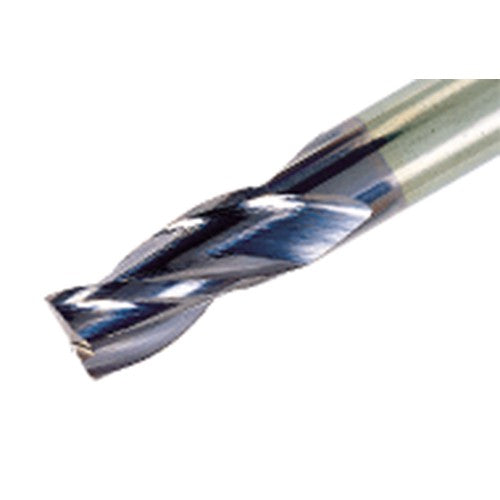

TECC200E3-38C20-104 AH725
Item #: TG435697268
Brand: Tungaloy
Model #: 5697268
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 20 mm |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 38 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hi Temp Alloys | |
| Overall Length (OAL) | 104 mm |
| Application | Slotting | Shoulder Milling |
| Cutting Edge Material | Carbide |
| Corner Chamfer Width (CHW) | 0.25 mm |
| Coating | TiAlN |
| Grade | AH725 |
| Flute Count (NOF) | 3 |
| Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees |
| Measurement Type | Metric |
