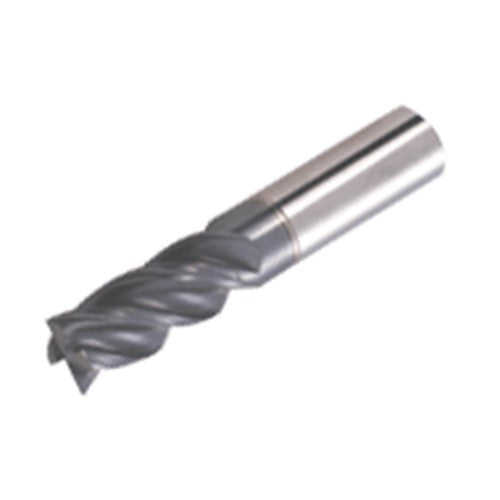

TEC100E4L-22/32C10CFS72 AH725
Item #: TG435696081
Brand: Tungaloy
Model #: 5696081
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| Application | Shoulder Milling |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Grade | AH725 |
| Depth of Cut Maximum (APMX) | 22 mm |
| Head Length (LH) | 32 mm |
| Overall Length (OAL) | 72 mm |
| Neck Length (LN) | 32 mm |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90 |
| Coating | TiAlN |
| Maximum Feed per Tooth (fz(max)) | 0.09 mm/tooth |
| Flute Count (NOF) | 4 |
| Minimum Feed per Tooth (fz(min)) | 0.035 mm/tooth |
| Shank Type | Round |
| Body Material | Carbide |
| End Shape | Square |
| Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hi Temp Alloys | |
