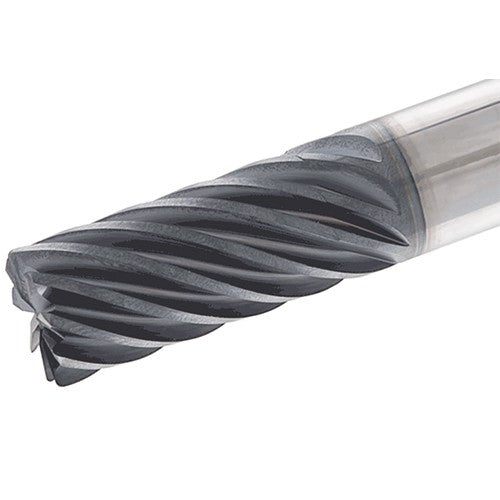

TECK120H7-26W12CF-R06T83 AH725
Item #: TG435623073
Brand: Tungaloy
Model #: 5623073
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Application | Shoulder Milling |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Corner Radius (RE) | 0.6 mm |
| Depth of Cut Maximum (APMX) | 26 mm |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 83 mm |
| Grade | AH725 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90 |
| Coating | TiAlN |
| Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Flute Count (NOF) | 7 |
| Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Shank Type | Weldon |
| Body Material | Carbide |
| End Shape | Corner Radius |
| Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hi Temp Alloys | |
