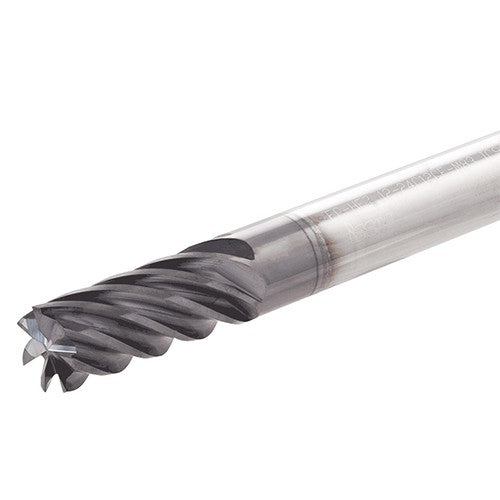

TEC120H7-36C12CF-M95 AH710
Item #: TG433326469
Brand: Tungaloy
Model #: 3326469
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Application | Finishing | Shoulder Milling |
| Depth of Cut Maximum (APMX) | 36 mm |
| Corner Chamfer Width (CHW) | 0.3 mm |
| Overall Length (OAL) | 95 mm |
| Grade | AH710 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90 |
| Coating | TiAlN |
| Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Flute Count (NOF) | 7 |
| Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Flute Helix Angle (FHA) | 37 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Measurement Type | Metric |
| End Shape | Chamfer |
