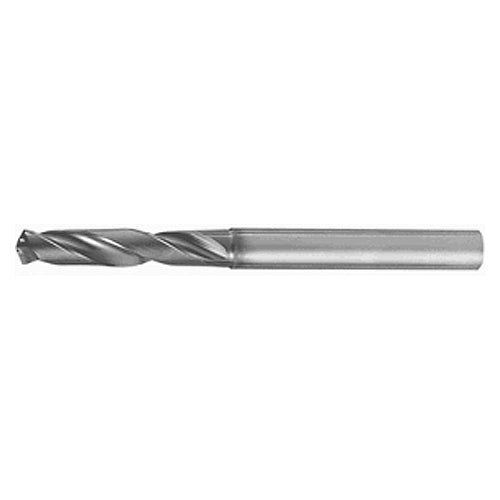

DSX1510F05 AH180
Item #: TG306818988
Brand: Tungaloy
Model #: 6818988
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 15.1 mm |
| Shank Length (LS) | 66 mm |
| Decimal Equivalent | 0.5945″ |
| Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 15.1 mm |
| Cutting Edge Material | Carbide |
| Length Group | 8xD |
| Tool Type | solid carbide Drills |
| Coating | TiAlN |
| Grade | AH180 |
| Application | Drilling |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Usable Length (LU) | 130.8 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 128 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 194 mm |
| Point Length (PL) | 2.75 mm |
