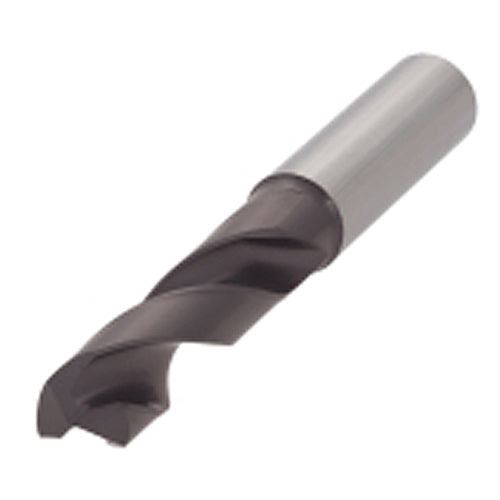

DSW083-035-10DE3 AH725
Item #: TG306154760
Brand: Tungaloy
Model #: 6154760
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 8.3 mm |
| Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.3 mm |
| Shape | Solid Carbide |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hi Temp Alloys | |
| Tool Type | Solid Carbide Drill |
| Application | | General Drilling | |
| Grade | AH725 |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Measurement Type | Metric |
| Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 35 mm |
| Point Angle (SIG) | 140 Degrees |
| Length Chip Flute (LCF) | 47 mm |
| Point Length (PL) | 1.51 mm |
| Overall Length (OAL) | 89 mm |
| Shank Length (LS) | 40 mm |
| Body Material | Carbide |
