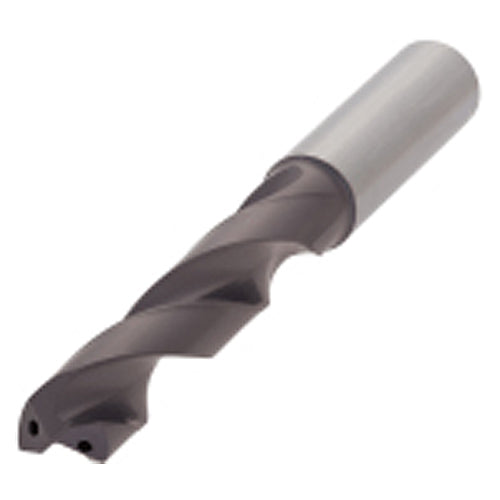

DSW108-056-12DI5 AH725
Item #: TG306154678
Brand: Tungaloy
Model #: 6154678
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 10.8 mm |
| Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10.8 mm |
| Cutting Edge Material | Carbide |
| Coating | TiAlN |
| Tool Type | solid carbide Drills |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Grade | AH725 |
| Application | | General Drilling | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Usable Length (LU) | 56 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Length Chip Flute (LCF) | 71 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 118 mm |
| Point Length (PL) | 1.97 mm |
| Body Material | Carbide |
| Shank Length (LS) | 45 mm |
