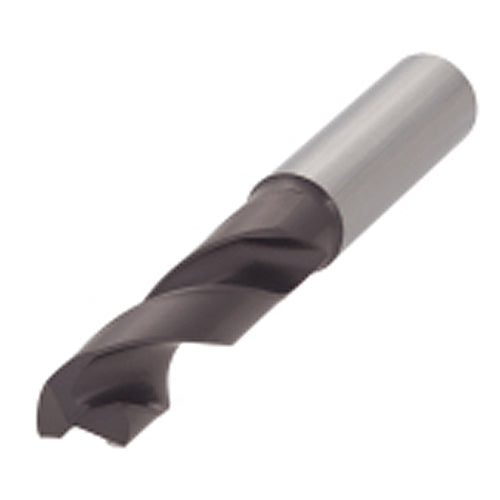

DSW150-045-16DE3 AH725
Item #: TG305530436
Brand: Tungaloy
Model #: 5530436
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 15 mm |
| Point Length (PL) | 2.73 mm |
| Decimal Equivalent | 0.5906″ |
| Shank Length (LS) | 50 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 15 mm |
| Shank Type | Round |
| Length Group | 3xD |
| Cutting Edge Material | Carbide |
| Coating | TiAlN |
| Tool Type | solid carbide Drills |
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium |
| Grade | AH725 |
| Application | Drilling |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Usable Length (LU) | 45 mm |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 65 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 115 mm |
