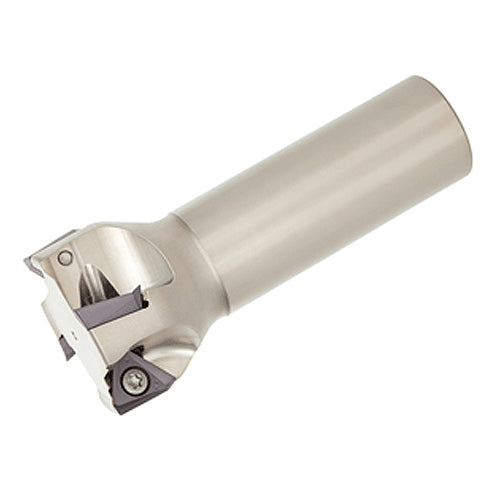

EPA15R050M32.0-04N
Item #: TG256996203
Brand: Tungaloy
Model #: 6996203
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 50 mm |
| Master Insert Identification (MIID) | TOMT150608PDER-MJ |
| Cutting Diameter (DC) | 50 mm |
| Weight of Item (WT) | 0.83 Kg |
| Cutting Diameter Maximum (DCX) | 50 mm |
| Head Length (LH) | 40 mm |
| Cutting Item Count (CICT) | 4 |
| Functional Length (LF) | 120 mm |
| Depth of Cut Maximum (APMX) | 15 mm |
| Tool Type | 90 indexable endmills |
| Overall Length (OAL) | 120 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round |
| Measurement Type | Metric |
| Application | | Shoulder Milling | |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Shank Length (LS) | 80 mm |
