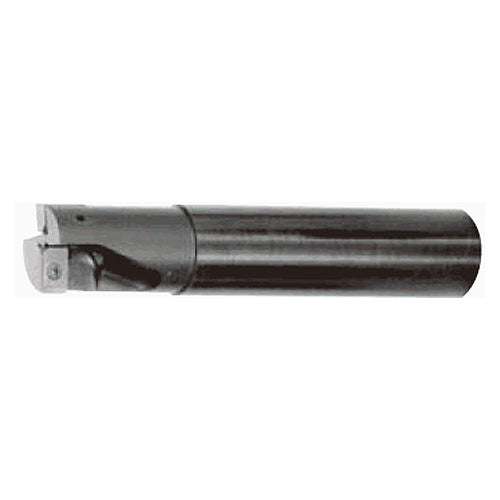

EVX10020RLA-E
Item #: TG256821657
Brand: Tungaloy
Model #: 6821657
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 20 mm |
| Master Insert Identification (MIID) | XXMU10H308PR-MJ |
| Cutting Diameter (DC) | 20 mm |
| Head Length (LH) | 60 mm |
| Cutting Diameter Maximum (DCX) | 20 mm |
| Functional Length (LF) | 120 mm |
| Cutting Item Count (CICT) | 2 |
| Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 9 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 120 mm |
| Measurement Type | Metric |
| Shank Type | Weldon |
| Body Material | Steel |
| Application | | Shoulder Milling | |
| Shank Length (LS) | 60 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
