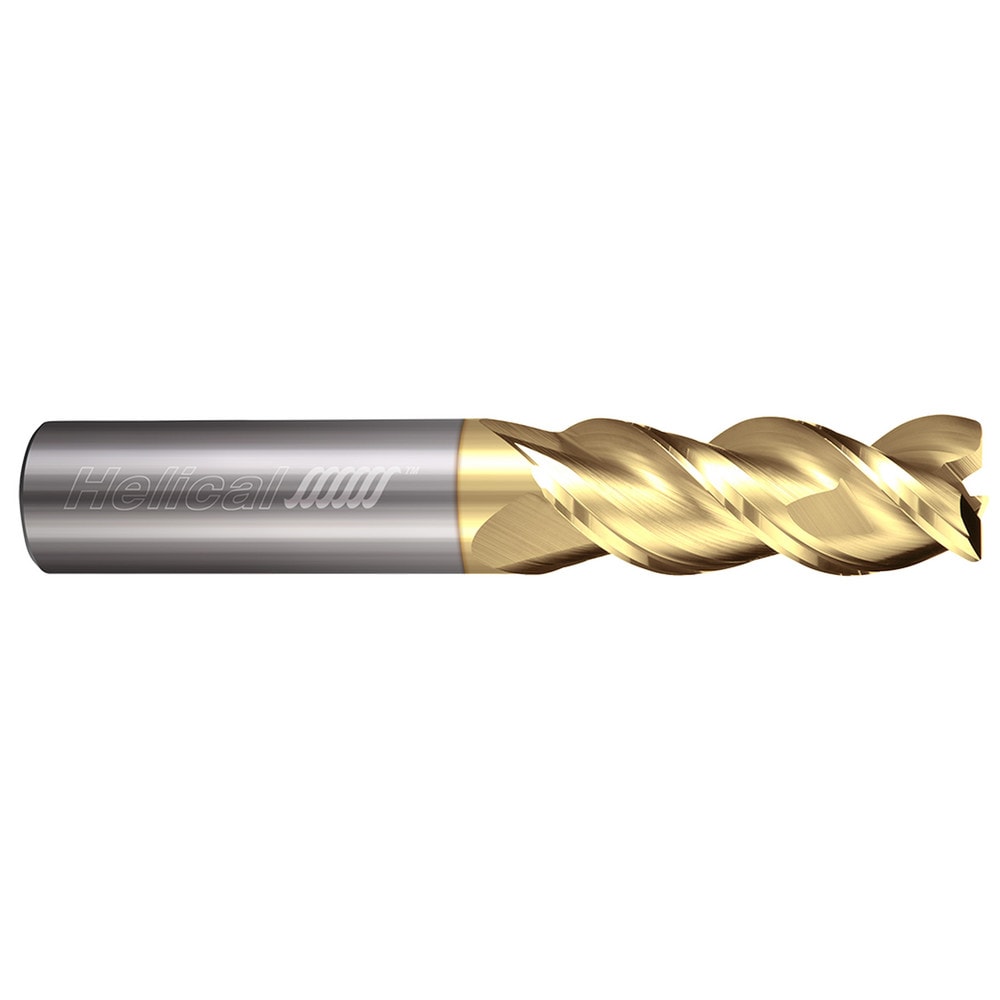

Brand: Helical Solutions / Part #: 81582
Item #: 09333584
Brand: Helical Solutions
Model #: 81582
Product Specifications
| Mill Diameter (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.0100 |
| Coating/Finish | Zplus |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 3 |
| Single Or Double End | Single |
| Overall Length (Inch) | 1-1/2 |
| Length of Cut (Inch) | 1/4 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Overall Length (Decimal Inch) | 1.5000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2500 |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Series | End Mills for Aluminum - 3 Flute - Corner Radius - 45? Helix |
