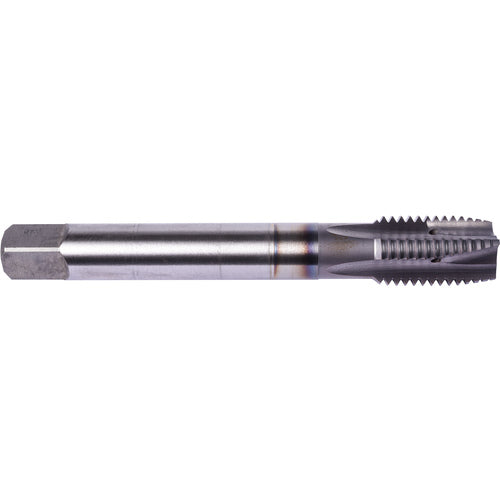

M20 2.50 MM 4 Flute Union Butterfield HSS-PM TiCN Applix M Machine Tap DIN/ANSI E-code # 1675M20X2.5
Item #: TD471716738
Brand: Union Butterfield
Model #: 6008013
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Tool Type | Machine Tap |
| Thread Size | M20 × 2.5 |
| Applicable Material | Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Thread Diameter Size (TDZ) | M20 |
| Connection Diameter Machine Side (DCONMS) | 0.652″ |
| Thread Pitch (TP) | 2.5 mm |
| Thread Cutting Part Length (THL) | 32 mm |
| Thread Tolerance Class (TCTR) | 6H |
| End Shape | Spiral Point |
| Overall Length (OAL) | 140 mm |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiCN |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 4 |
| Length Group | 3xD |
| Cutting Edge Material | HSSCoPM |
| Square Size | 0.489″ |
| Standard | DIN|ANSI |
| Measurement Type | Metric |
