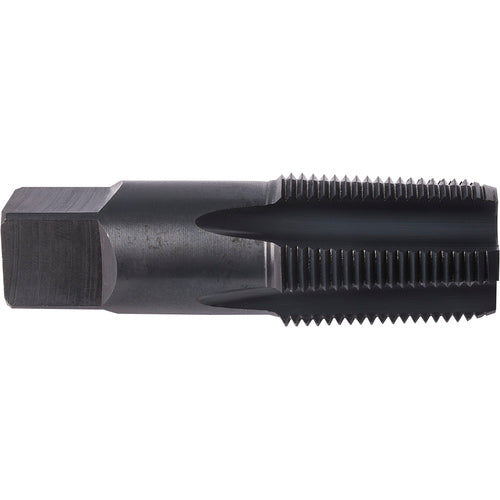

3/4″- 14 5 Flute Union Butterfield HSS Nitride NPT Pipe Tap ANSI B94.9 E-code # 15443/4X14
Item #: TD281011765
Brand: Union Butterfield
Model #: 6007191
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 3/4″ |
| Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 14 |
| Applicable Material | Cast Iron|Copper|Hardened Steel|Steel |
| Thread Standard | NPT |
| Coating | Nitride |
| Flute Helix Angle (FHA) | 0 Degrees |
| Cutting Edge Material | HSS |
| Flute Count (NOF) | 5 |
| Measurement Type | Fractional |
| Overall Length (OAL) | 3-1/4″ |
| Standard | ANSI B94.9 |
| Thread Cutting Part Length (THL) | 1-3/8″ |
| Length Group | 1.5D |
| Connection Diameter Machine Side (DCONMS) | 0.906″ |
| Square Size | 0.679″ |
| Flute Type | Straight |
| Thread Size | 3/4″ - 14 |
| Coolant Supply Property (CSP) | External |
