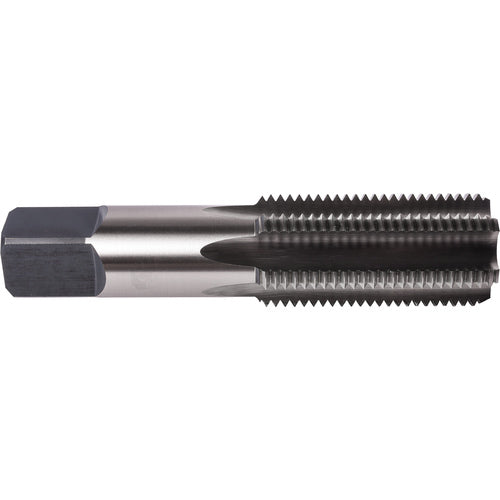

1-1/4″ - 8 4 Flute Bottoming Union Butterfield HSS Bright UNS Hand Tap ANSI E-code # 15051.1/4NO3
Item #: TD251013315
Brand: Union Butterfield
Model #: 6007378
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1-1/4″ |
| Standard | ANSI |
| Threads per Inch (TPI) | 8 |
| Tool Type | Hand Tap |
| Thread Standard | NS |
| Coating | Bright |
| Overall Length (OAL) | 5-3/4″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 2-9/16″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 1.021″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Length Group | 1.5D |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Square Size | 0.766″ |
| Cutting Edge Material | HSS |
| Measurement Type | Fractional |
| Thread Tolerance Class (TCTR) | 2B|H5 |
| Thread Size | 1-1/4″ - 8 |
