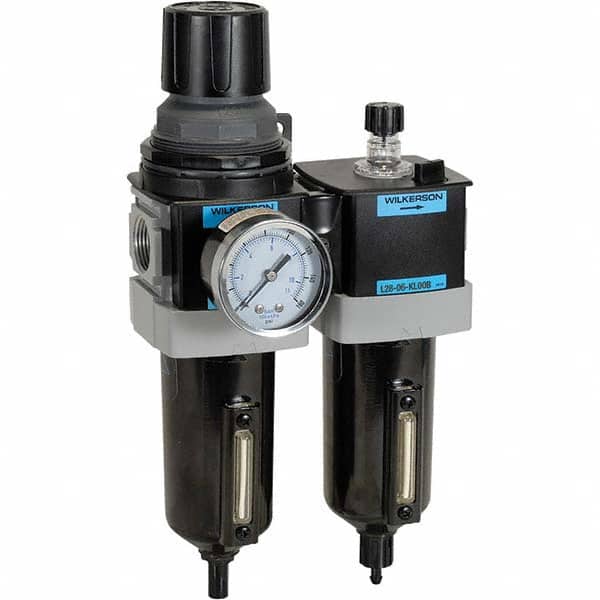

Wilkerson - Filter, Regulator & Lubricator (FRL) Units Configuration: 2 Pc. Filter/Regulator-Lubricator Body Type: Standard
Item #: 11759933
Brand: Wilkerson
Model #: D28-03-FLG0B
Product Specifications
Filter, Regulator & Lubricator (FRL) Units; Configuration: 2 Pc. Filter/Regulator-Lubricator ; Body Type: Standard ; Port Size NPT: 3/8 ; Maximum Supply Pressure (psi): 250 ; Height (Inch): 11.44 ; Width (Decimal Inch): 6.1000
| Configuration | 2 Pc. Filter/Regulator-Lubricator |
| Body Type | Standard |
| Port Size NPT | 3/8 |
| Maximum Supply Pressure (psi) | 250 |
| Height (Inch) | 11.44 |
| Width (Decimal Inch) | 6.1000 |
| Bowl Material | Aluminum |
| Standard Cubic Feet Per Minute | 110.00 |
| Includes Sight Glass | Yes |
| Bowl Guard | No |
| Brackets Included | Yes |
| Filter Bowl Capacity (oz.) | 2.9 |
| Drain Type | Manual Drain |
| Gauge Port Size (Inch) | 1/4 |
| Pressure Gauge Included | Yes |
| Minimum Temperature (F) | -13 |
| Maximum Temperature (F) | 150 |
| Micron Rating | 5µ |
| Series | 28 |
| Range | 0 - 125 |
| Modular Connection | Yes |
| Lubricator Bowl Capacity (oz.) | 6.0 |
