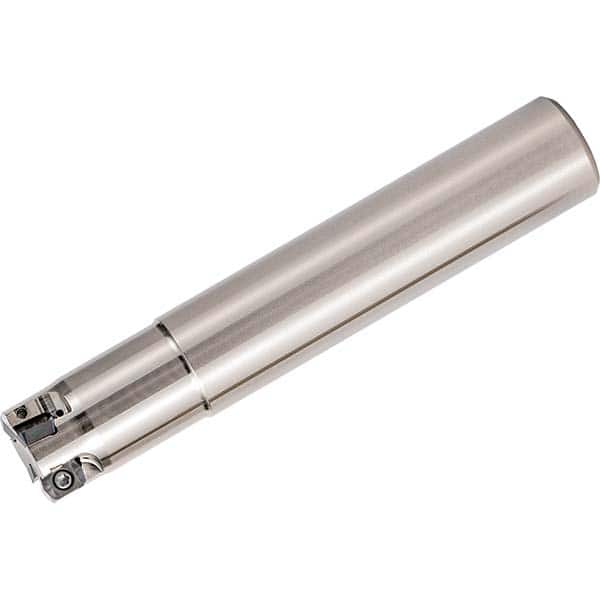

Kyocera - Indexable High-Feed End Mills Maximum Depth of Cut (mm): 15.88 Maximum Depth of Cut (Decimal Inch): 0.6250
Item #: 46120143
Brand: Kyocera
Model #: 8607021
Product Specifications
Indexable High-Feed End Mills; Maximum Depth of Cut (mm): 15.88 ; Maximum Depth of Cut (Decimal Inch): 0.6250 ; Shank Type: Cylindrical ; Shank Diameter (mm): 15.8800 ; Shank Diameter (Decimal Inch): 0.6250 ; Number of Cutter Inserts: 4
| Maximum Depth of Cut (mm) | 15.88 |
| Maximum Depth of Cut (Decimal Inch) | 0.6250 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 15.8800 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Number of Cutter Inserts | 4 |
| Insert Style | LPGT01 |
| Toolholder Style | MFH |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Number of Flutes | 4 |
| Maximum RPM | 11400.000 |
| Through Coolant | Yes |
| Head Length (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 0.6250 |
| Overall Length (mm) | 88.9000 |
| Overall Length (Decimal Inch) | 3.50000 |
| Toolholder Material | Steel |
| Series | MFH-Micro |
| Lead Angle | 10 |
| Head Length (mm) | 25.40 |
| Manufacturers Catalog Number | MFH0625S625014T35 |
