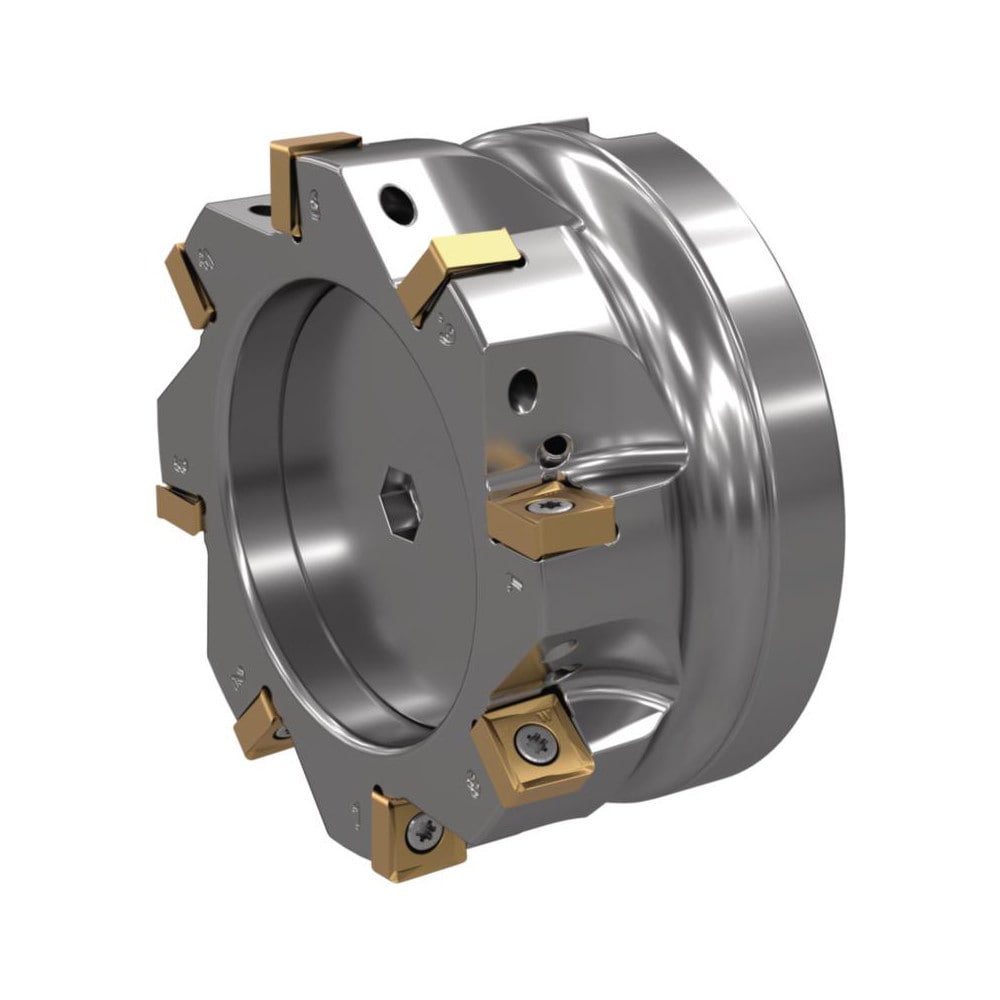

Brand: Widia / Part #: 6596138
Item #: 09785718
Brand: Widia
Model #: 6596138
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3872 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | SNHX1204.. |
| Maximum Ramping Angle | 0 |
| Cutter Style | VSM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Radial); Positive (Axial) |
| Rake Angle | -12.900 |
| Series | VSM890 |
| Maximum Body Diameter (Decimal Inch) | 3.8489 |
| Overall Height (Decimal Inch) | 2.0000 |
| Keyway Width (mm) | 16.13 |
| Hub Diameter (Decimal Inch) | 3.8100 |
| Maximum RPM | 15700.000 |
| Tool Application | Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | VSM890D400Z06S150SN12 |
| Coolant Hole Diameter (Decimal Inch) | 0.1181 |
| Complete Insert Compatibility | SNHX120408PNERMM |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VSM890D400Z06S150SN12 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
