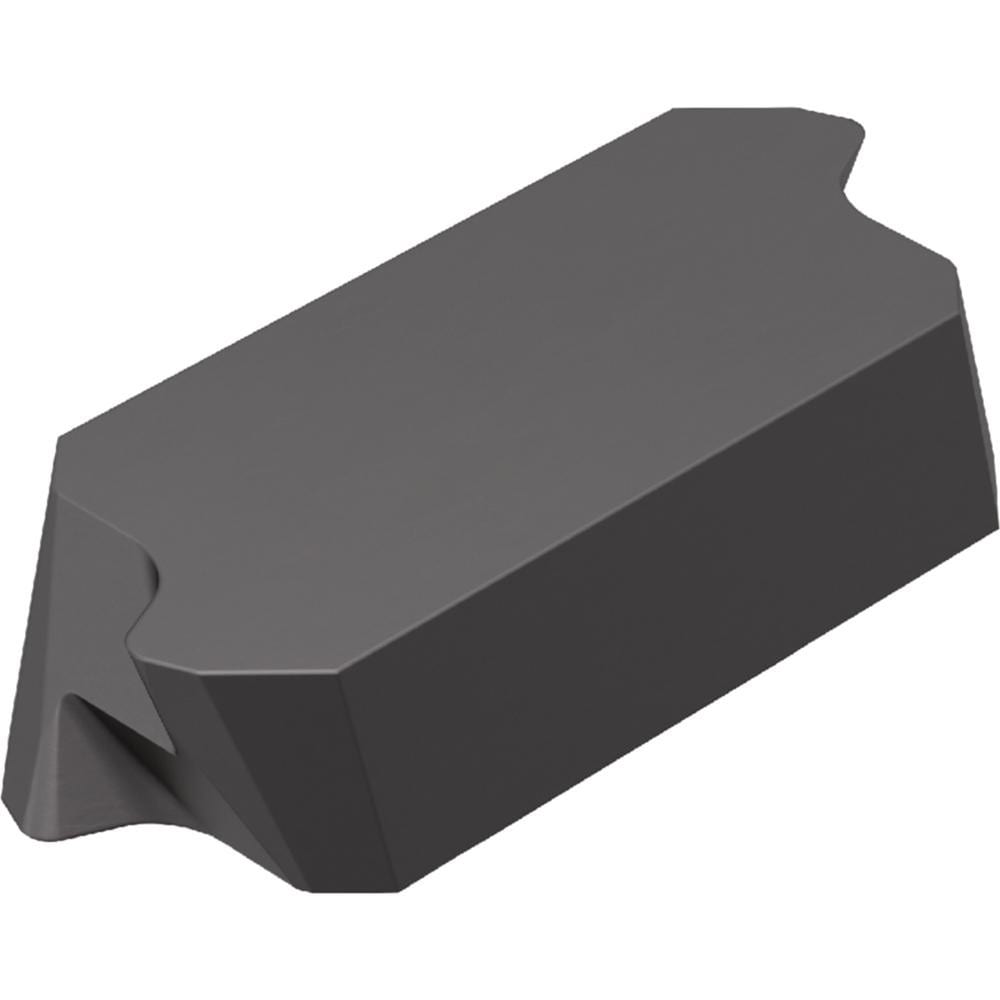

Brand: Widia / Part #: 6140047
Item #: 94468709
Brand: Widia
Model #: 6140047
Product Specifications
| Insert Style | LNCX |
| Insert Size Code | 1806 |
| Insert Size | 18 |
| Insert Material | Carbide |
| Manufacturer Grade | THM |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Inscribed Circle (mm) | 10.00 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Insert Hand | Right Hand |
| Relief Angle | 0.000 |
| Series | LNCX |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.7280 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Negative |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | LNCX1806AZR11 |
| Iso Code | LNCX1806AZR11 |
| Manufacturers Catalog Number | LNCX1806AZR11 |
| Cutter Series Compatibility | CIP MILLING |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Rectangle |
| Insert Holding Method | Clamp |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Double |
| Coating/Finish | Uncoated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3937 |
| Width (Mm - 2 Decimals) | 10.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2520 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7280 |
