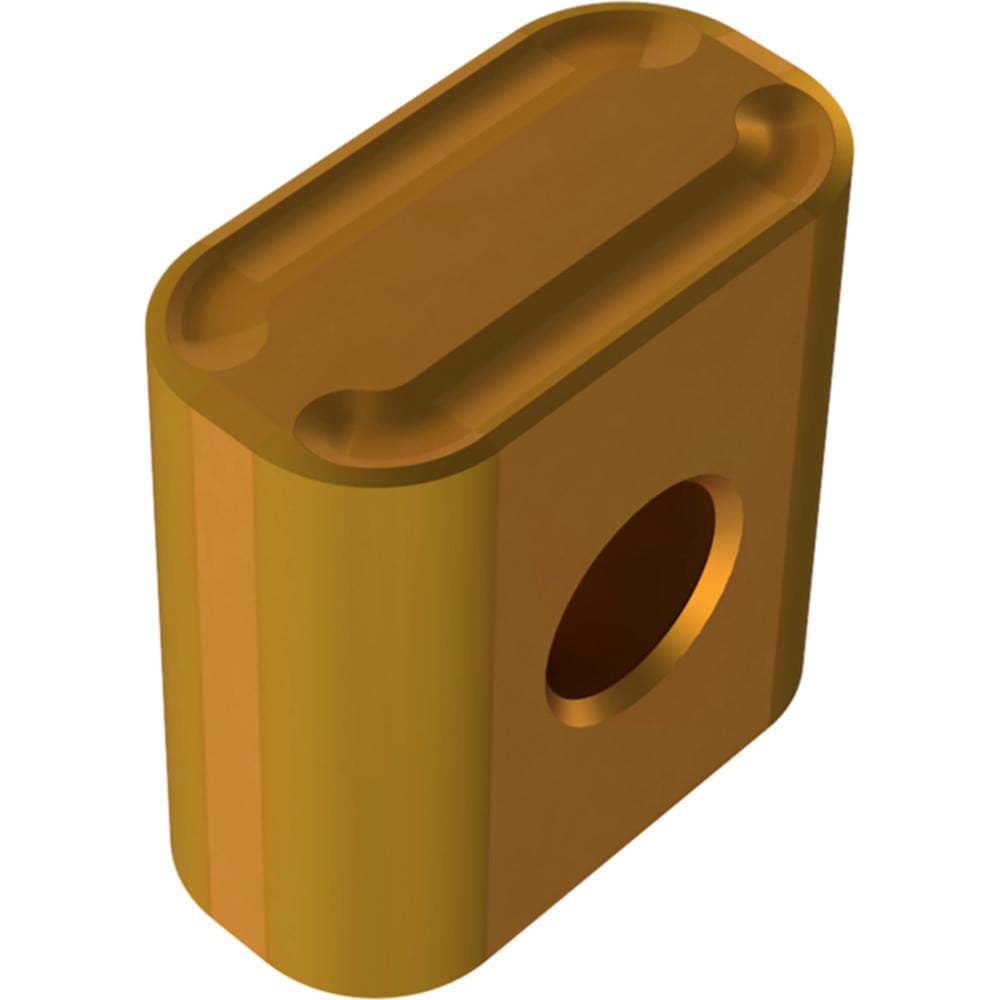

Brand: Widia / Part #: 2028078
Item #: 91919159
Brand: Widia
Model #: 2028078
Product Specifications
| Insert Style | LNUX |
| Insert Shape Code | L |
| Insert Size Code | 191940 |
| Insert Shape | Rectangle |
| Coating/Finish | Uncoated |
| Manufacturer Grade | AT15S |
| Corner Radius (Decimal Inch) | 0.1575 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Inscribed Circle (Decimal Inch) | 0.3940 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/4 |
| Clearance Code | N |
| Tolerance Code | U |
| Included Angle | 90.00 |
| Relief Angle | 0.000 |
| Series | LNUX |
| Coating Process | Uncoated |
| Insert Length (Inch) | 3/4 |
| Number Of Cutting Edges | 4 |
| Ansi Code | LNUX191940T |
| Iso Code | LNUX191940T |
| Coating Classification | Uncoated |
| Chip Breaker | T |
| Style | LNUX |
| Width (Decimal Inch - 4 Decimals) | 0.3940 |
