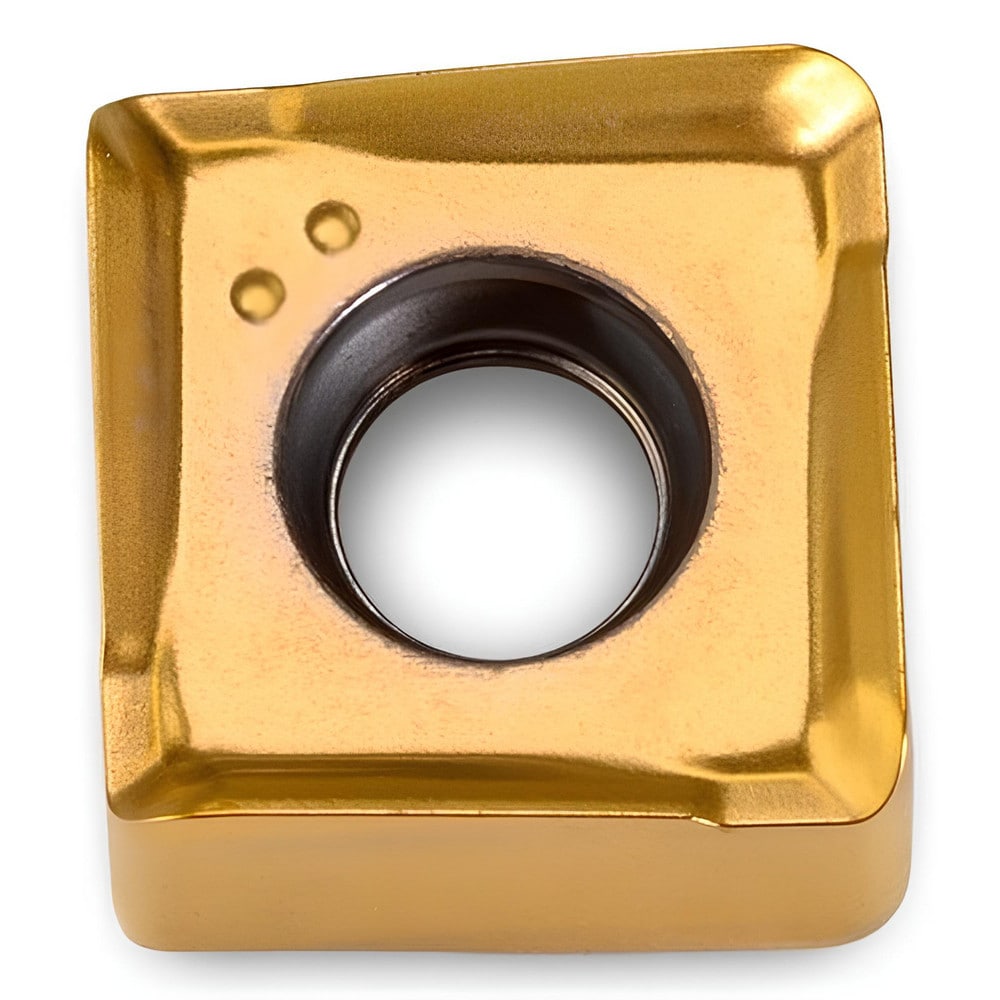

Brand: Ingersoll Cutting Tools / Part #: 6322695
Item #: 94019262
Brand: Ingersoll Cutting Tools
Model #: 6322695
Product Specifications
| Insert Style | SQGU |
| Insert Size Code | 070408 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2530 |
| Inscribed Circle (Decimal Inch) | 0.2750 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Series | SQGU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Number Of Cutting Edges | 8 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | SQGU070408TR-M |
| Manufacturers Catalog Number | SQGU070408TR-M IN2530 |
| Cutter Series Compatibility | DJ6E; DJ5E; 1DJ1E |
| Chip Breaker | M |
| Cutting Direction | Right Hand |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2750 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1650 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.2750 |
