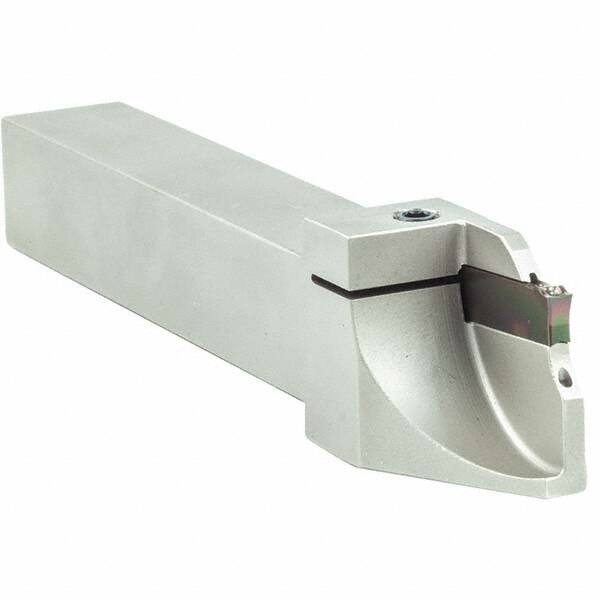

Arno - 0.63" Max Depth, 0.079 to 1.26" Width, External Left Hand Indexable Grooving/Cutoff Toolholder
Item #: 20074787
Brand: Arno
Model #: 502409
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Minimum Groove Width (Decimal Inch) | 0.0790 |
| Minimum Groove Width (mm) | 2.01 |
| Maximum Groove Width (Decimal Inch) | 1.2600 |
| Overall Length (Decimal Inch) | 4.3310 |
| Series | SA Parting / Grooving |
| Toolholder Style | HSA Monoblock |
| Insert Compatibility | SA 24-20 |
| Shank Height (Inch) | 5/8 |
| Shank Width/Diameter (Decimal Inch) | 0.6300 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Head Length (Decimal Inch) | 0.6300 |
| Manufacturers Catalog Number | HSA 1616UD-L-SA2402-32-ACS2-.625 |
