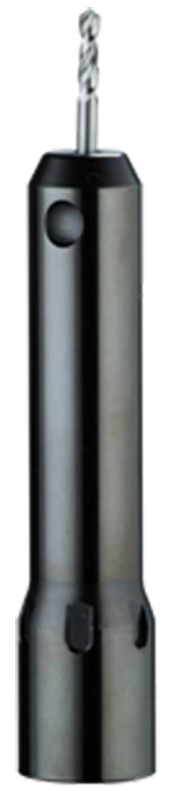

IR16-EM5/16-2.0" End Mill Holder

Item #: SG81ER1608051
Manufacturer: Prime Tool
Mfg #: T12ER16A04

Technical Specifications:
*Base Coupling OD: 1.102 / 28mm *Base Coupling Size: IR16 *Bore ID: 5/16 *Brand Name: Prime Tool *Dimension D1: 1.00 / 25.4mm *Gage Length: EM5/16 *Length: 2.00 / 50.8mm *Neck Length: 1.68 / 42.67mm *Overall Length: 4.13 / 104.90mm *Shank: ER16 *Weight: 0.59083 lbs

Description:
*Precision Ground Pilot Threads *Shaft Tolerance: H3 *Case Hardness: HRC 56 +/-2 *Seat Runout: 0.005mm (0.0002") *Balance G2.5 @ 25,000 RPM

Shipping Info:
*Actual Weight - .7000 *Dimensions - Height: 1.30 Length: 4.40 Width: 1.30
