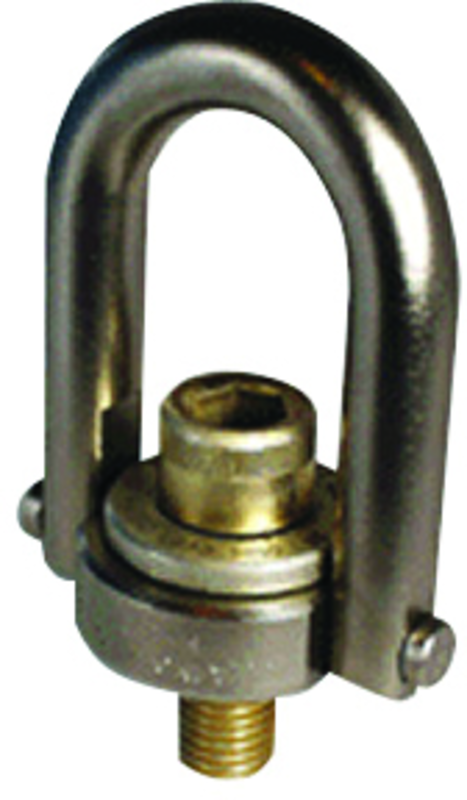

M24 Hoist Ring

Item #: SG6723474
Manufacturer: Jergens
Mfg #: 23474

Technical Specifications:
•Base Diameter: 58.7 •Base Height: 69 •Brand Name: Jergens •Diameter: 25.4 •External Radius: 163.0 •Overall Width: 130.6 •Radius: 35.6 •Rating Load: 4200 lbs •Size: M24 x 3.0 •Thread Length: 37.0 •Torque (ft/lbs): 305 •Type: Center-Pull Standard U-Bar

Description:
•Full 360 degree Swivel and 180 degree Pivot action •Rated at 5:1 Strength factor •Material: Alloy Steel •Finish: Black Oxide (Except Washer) •U-Bar, bolt, pins, base, washer and bushing are magnetic particle inspected •Washer: Zinc Plated with Gold Colored (inch), Clear/Blue (metric) Conversion Coating •Proof tested to 200% of rated load capacity

Shipping Info:
•Actual Weight - 7.7422 •Dimensions - Height: 6.00 Length: 7.00 Width: 6.00
