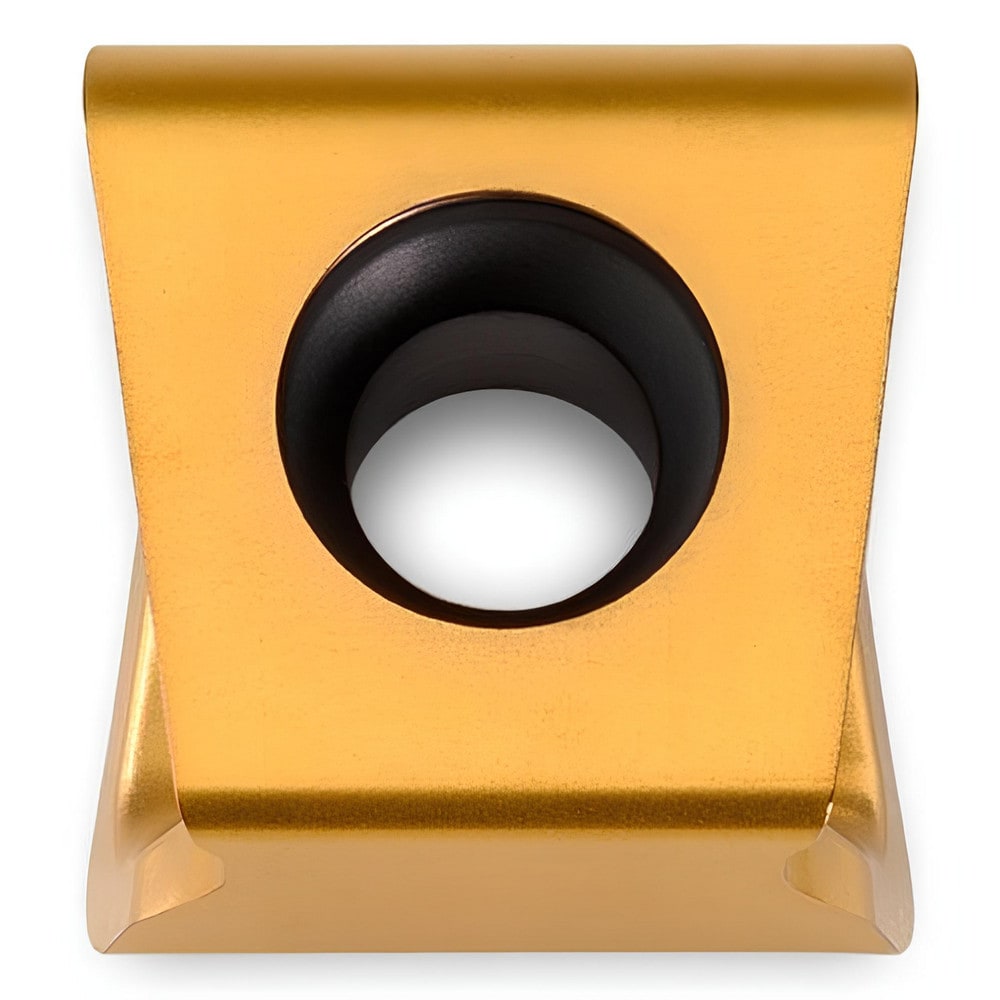

Brand: Ingersoll Cutting Tools / Part #: 2903377
Item #: 67306191
Brand: Ingersoll Cutting Tools
Model #: 2903377
Product Specifications
| Insert Style | DGM |
| Insert Size Code | 325 |
| Insert Material | Carbide |
| Manufacturer Grade | IN4015 |
| Length (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.4810 |
| Corner Radius (Inch) | 3/32 |
| Insert Hand | Neutral |
| Series | DGM |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | DGM325-003 A |
| Rake Angle | 30.000 |
| Manufacturers Catalog Number | DGM325-003 A IN4015 |
| Cutter Series Compatibility | 3EJ6J |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Shape | Rectangle |
| Length of Cut (mm) | 12.7000 |
| Insert Holding Method | Screw |
| Thickness (mm) | 8.0000 |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | AlCrO; TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4810 |
| Multi-Use Tool | Yes |
