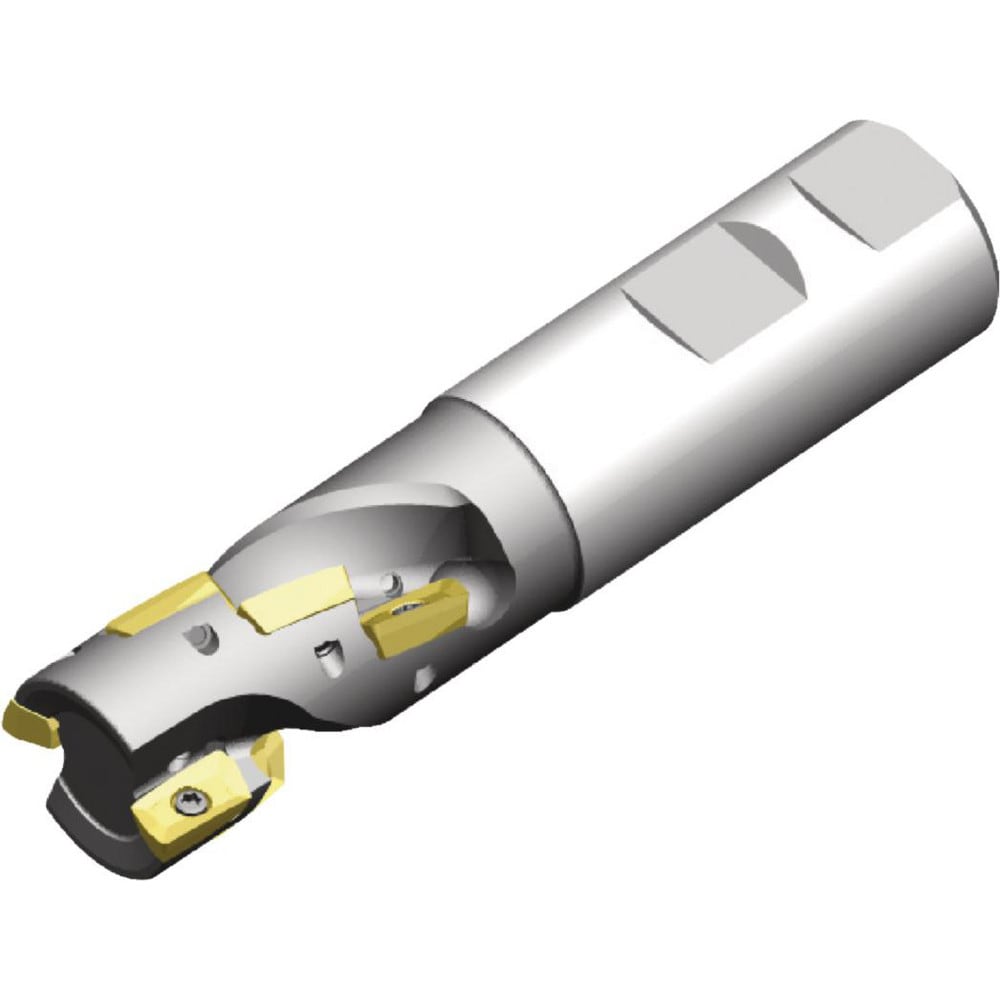

Brand: Widia / Part #: 6738387
Item #: 99313769
Brand: Widia
Model #: 6738387
Product Specifications
| Minimum Cutting Diameter (mm) | 25.00 |
| Maximum Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 43.10 |
| Cutter Style | VSM |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 25.0000 |
| Maximum Ramping Angle | 3.2 ? |
| Insert Holding Method | Screw |
| Shank Taper Size | None |
| Overall Length (mm) | 113.0000 |
| Tool Material | Steel |
| Series | VSM11H |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (mm) | 57.000 |
| Head Length (mm) | 56.00 |
| Maximum RPM | 30000.000 |
| Tool Application | Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Helical End Mill |
| Coolant Hole Diameter (mm) | 5.00 |
| Rake | Negative (Radial); Positive (Axial) |
| Complete Insert Compatibility | XD.T11.. |
| Insert Compatibility | XD.T11.. |
| Hand of Holder | Right Hand |
| Rake Angle | -6.50 ? (Radial);3.50 ? (Axial) |
| Multi-Use Tool | No |
| ISO Number | VSM11H025Z02B25XD11 |
| Manufacturers Catalog Number | VSM11H025Z02B25XD11 |
| Usable Length (mm) | 56.000 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 8 |
| Coolant Through | Yes |
