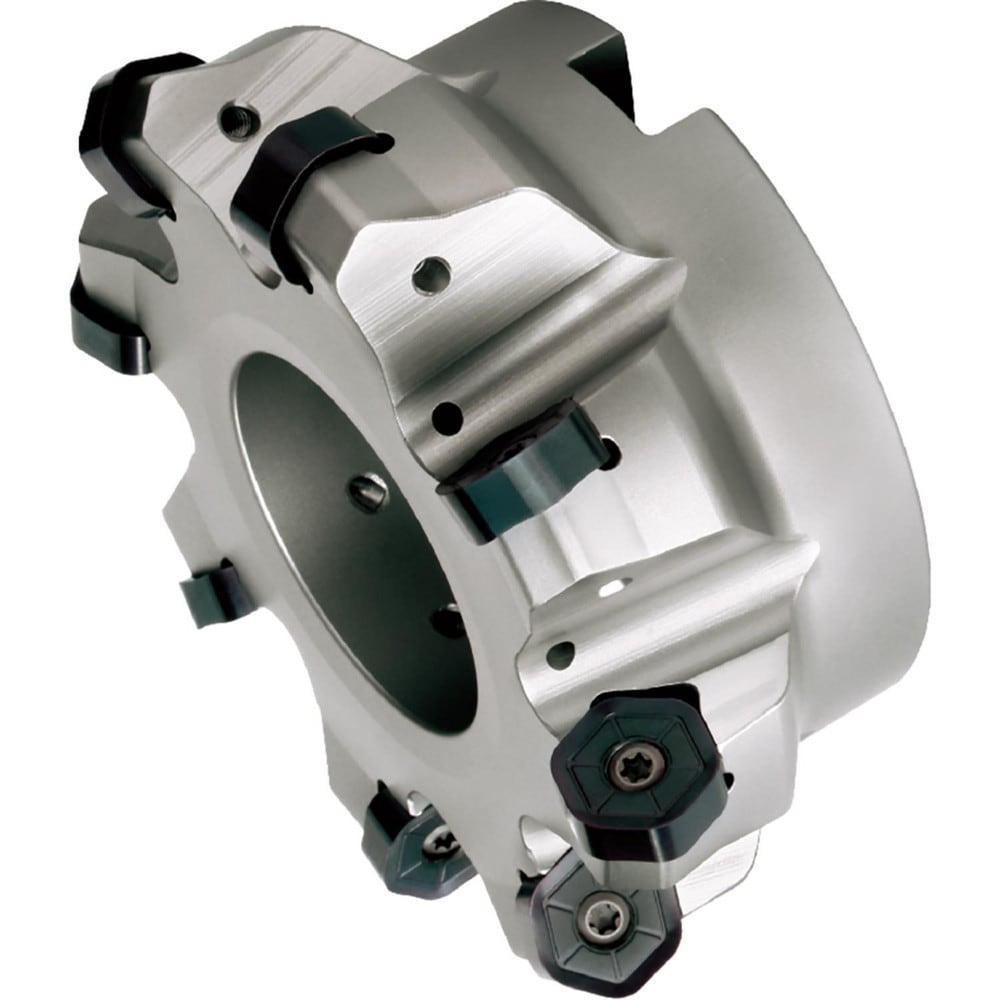

Brand: Widia / Part #: 3958021

Brand: Widia / Part #: 3958021


Item #: 97567424
Brand: Widia
Model #: 3958021

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 4.0000
Minimum Cutting Diameter (Inch) 4
Maximum Cutting Diameter (Decimal Inch) 4.4323
Maximum Depth of Cut (Decimal Inch) 0.1732
Arbor Hole Diameter (Decimal Inch) 1.5000
Arbor Hole Diameter (Inch) 1-1/2
Lead Angle 45.000
Compatible Insert Size Code HN..0905
Cutter Style M1200
Cutting Direction Right Hand
Insert Holding Method Screw
Rake Negative
Series M1200
Hub Diameter (Decimal Inch) 3.6614
Overall Height (Inch) 1-3/4
Overall Height (Decimal Inch) 1.7500
Maximum Body Diameter (Decimal Inch) 4.2870
Maximum RPM 6300.000
Tool Application Facing; Milling
Tool Performance General Purpose
Primary Workpiece Material Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; H; K; M; N
Complete Insert Compatibility HNGJ0905ANENLD
Toolholder Material Steel
Number Of Cutter Inserts 11
Coolant Through Yes
Number Of Flutes 11
$1,134.48
