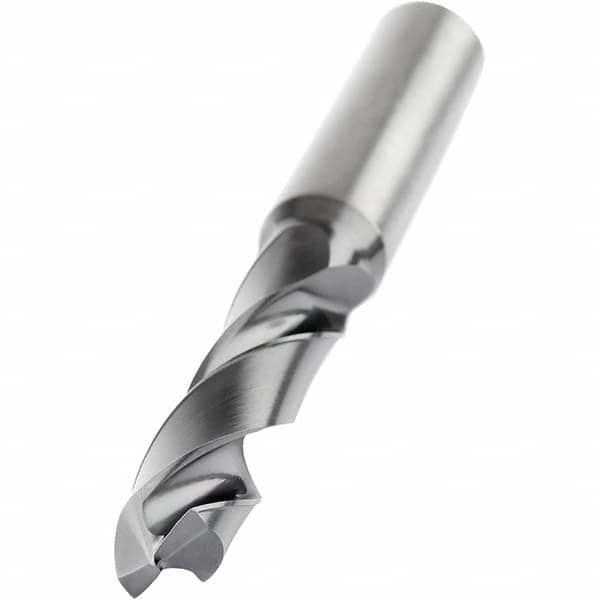

Kennametal - 23/64" 140° Carbide Screw Machine Drill Bit
Item #: 14964670
Brand: Kennametal
Model #: 6782486
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3594 |
| Drill Bit Size (Inch) | 23/64 |
| Drill Point Angle | 140 |
| Drill Bit Material | Carbide |
| Drill Bit Finish/Coating | TiN/AlTiN |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (mm) | 46.00 |
| Overall Length (mm) | 89.0000 |
| Flute Length x Diameter Ratio | 3.5xD |
| Shank Diameter (Inch) | 3/8 |
| Flute Type | Helical Flute |
| Maximum Drilling Depth (mm) | 34.70 |
| Shank Length (mm) | 40.500 |
| Number of Flutes | 2 |
| Drill Point Length (Decimal Inch) | 0.0768 |
| Drill Tip Finish/Coating | TiN/AlTiN |
| Through Coolant | Yes |
| Drill Bit Grade | KCP15B |
| Drill Bit Grade | KCP15B |
| Series/List | HPX |
