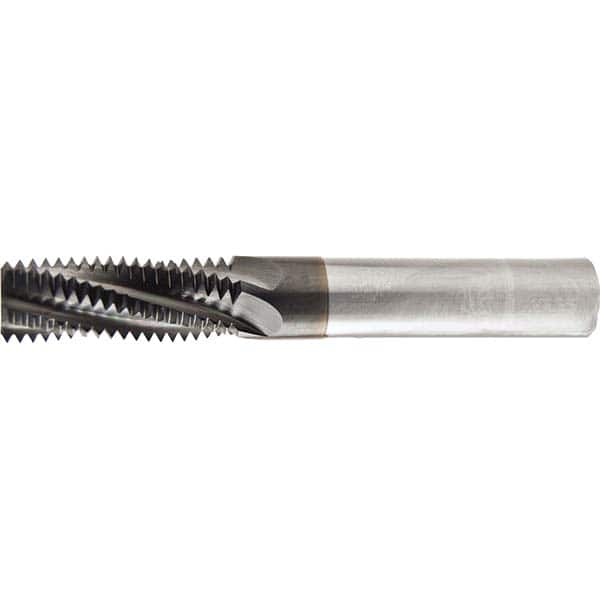

Cleveland - Helical Flute Thread Mills Pitch (mm): 0.80 Material: Carbide
Item #: 18100826
Brand: Cleveland
Model #: C95073
Features and Benefits
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat resistant and used for high speed applications on stainless steels, nickel and titanium alloys.
Product Specifications
Helical Flute Thread Mills; Pitch (mm): 0.80 ; Material: Carbide ; Thread Size (mm): M4.5x0.75 ; Thread Type: Internal/External ; Shank Diameter (mm): 3.1800 ; Number of Flutes: 3
| Pitch (mm) | 0.80 |
| Material | Carbide |
| Thread Size (mm) | M4.5x0.75 |
| Thread Type | Internal/External |
| Shank Diameter (mm) | 3.1800 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.1200 |
| Cutting Diameter (mm) | 3.05 |
| Length of Cut (Inch) | 0.25 |
| Finish/Coating | TiAlN |
| Through Coolant | NonThrough Coolant |
| Minimum Nominal Diameter (mm) | 4.50 |
| Overall Length (Inch) | 2 |
| Shank Length (Inch) | 1.75 |
| Flute Direction | Left/Right Hand |
| Material Grade | Sub Micrograin |
| PSC Code | 5133 |
