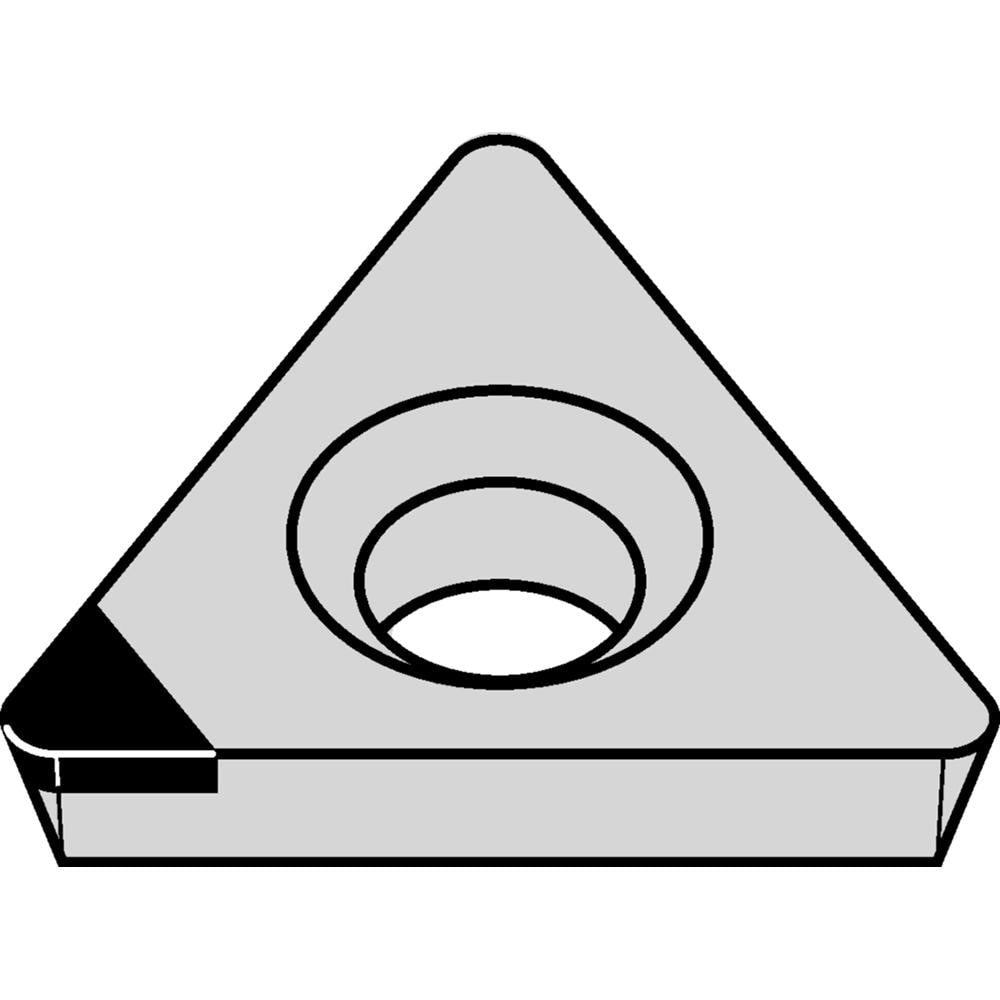

Brand: Widia / Part #: 2823949
Item #: 90688748
Brand: Widia
Model #: 2823949
Product Specifications
| Insert Style | TPHB |
| Insert Shape Code | T |
| Insert Size Code | 21505 |
| Insert Shape | Triangle |
| Coating/Finish | Uncoated |
| Manufacturer Grade | CBN6 |
| Corner Radius (Decimal Inch) | 0.0071 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Hole Diameter (Decimal Inch) | 0.1299 |
| Maximum Depth of Cut (Decimal Inch) | 0.0640 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Clearance Code | P |
| Tolerance Code | H |
| Included Angle | 60.00 |
| Relief Angle | 11.000 |
| Series | TPHB |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.4330 |
| Number Of Cutting Edges | 1 |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H |
| Ansi Code | TPHB21505M |
| Iso Code | TPHB110202M |
| Manufacturers Catalog Number | TPHB21505M |
| Cutting Direction | Neutral |
| Single or Multi Tipped | Single Tipped |
| Coating Classification | Uncoated |
| Chip Breaker | None |
| Style | TPHB |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning; Boring |
