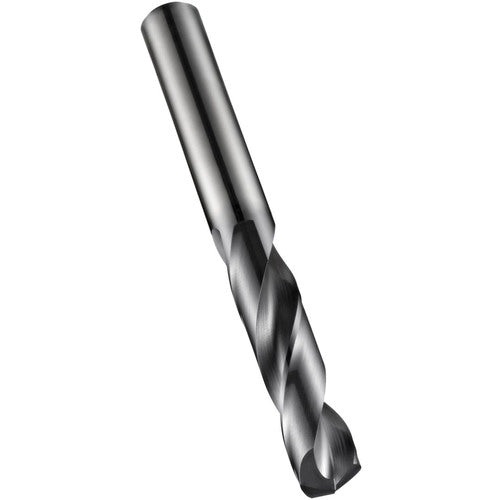

41/64″ Dia. × 18 mm Shank × 73 mm Flute Length × 123 mm OAL, 140°, TiAlN, External Coolant, DIN 6535 HA | DIN 6537 K, Round Solid Carbide Drill
Item #: PT400625118
Brand: Dormer
Model #: 5981162
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 41/64″ |
| Flute Helix Angle (FHA) | CW |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 41/64″ |
| Shank Type | Round |
| Decimal Equivalent | 0.6406″ |
| Shank Standard | DIN 6535 HA | DIN 6537 K |
| Length Group | Short |
| Shape | Solid Carbide |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Tool Type | Solid Carbide |
| Application | General Drilling |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 18 mm |
| Series/List # | R458 |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 73 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 123 mm |
